PDF RAG Chatbot with MongoDB Atlas and Future AGI

Register a trace provider and instrument LangChain before you build anything else, so every chain call you write from here on is traced automatically.

from fi_instrumentation import register
from fi_instrumentation.fi_types import ProjectType
from traceai_langchain import LangChainInstrumentor

trace_provider = register(
    project_type=ProjectType.OBSERVE,
    project_name="langchain_mongodb_project",
)

LangChainInstrumentor().instrument(tracer_provider=trace_provider)

• register() sets up an OpenTelemetry tracer that ships spans to Future AGI.
• LangChainInstrumentor().instrument() auto-instruments LangChain so every embedding, retriever, and LLM call in the chain becomes a span with model name, token usage, prompt, and latency attached.

You should see no errors on import, and the langchain_mongodb_project project appear under Observe → Traces once you run the first query in step 4.

MongoDB Atlas needs to know the exact vector length before it can index it, and that length depends on the embedding model. Detect it at runtime instead of hardcoding it, so switching models later doesn’t silently break the index.

from langchain_openai import OpenAIEmbeddings

embeddings = OpenAIEmbeddings(model="text-embedding-3-small")
dimension = len(embeddings.embed_query("dimension probe"))
print(f"embedding dimension: {dimension}")

Use that dimension value when you create the Atlas Vector Search index (vector on current Atlas clusters, knnVector as a legacy fallback on older ones), with cosine similarity as the metric. Create the index in the Atlas UI’s Search tab or with the Atlas CLI, using this definition:

{
  "name": "vector_index",
  "type": "vectorSearch",
  "fields": [
    {
      "type": "vector",
      "path": "embedding",
      "numDimensions": 1536,
      "similarity": "cosine"
    }
  ]
}

You should see embedding dimension: 1536 printed for text-embedding-3-small. If Atlas rejects the index definition, the dimension in the index doesn’t match this value.

Extract the document, split it into overlapping chunks so context survives page boundaries, embed each chunk, and write it to the Atlas collection you indexed in step 2.

from langchain_community.document_loaders import PyPDFLoader
from langchain_text_splitters import RecursiveCharacterTextSplitter
from langchain_mongodb import MongoDBAtlasVectorSearch
from pymongo import MongoClient
import os

client = MongoClient(os.environ["MONGODB_ATLAS_URI"])
collection = client["rag_demo"]["pdf_chunks"]

pages = PyPDFLoader("refund-policy.pdf").load()
splitter = RecursiveCharacterTextSplitter(chunk_size=1000, chunk_overlap=150)
chunks = splitter.split_documents(pages)

vector_store = MongoDBAtlasVectorSearch.from_documents(
    documents=chunks,
    embedding=embeddings,
    collection=collection,
    index_name="vector_index",
)
print(f"indexed {len(chunks)} chunks")

You should see indexed N chunks printed, and that many documents in the rag_demo.pdf_chunks collection in Atlas.

Retrieve the top matching chunks for a question and pass them to the model through a RetrievalQA chain, so answers stay grounded in the document instead of the model’s own knowledge.

from langchain.chains import RetrievalQA
from langchain_openai import ChatOpenAI

retriever = vector_store.as_retriever(search_kwargs={"k": 6})
qa_chain = RetrievalQA.from_chain_type(
    llm=ChatOpenAI(model="gpt-4o-mini", temperature=0),
    retriever=retriever,
    return_source_documents=True,
)

response = qa_chain.invoke({"query": "Can I get a refund on a final-sale item?"})
print(response["result"])

trace_provider.force_flush()

You should see an answer printed, and a new trace in Observe → Traces → langchain_mongodb_project with an embedding span, a retriever span, and an LLM span underneath it.

Configure evals in the platform as an Eval Task, not from the SDK, so every future question through this chain gets scored the same way. Create the task on langchain_mongodb_project and pick evals that isolate each layer of the pipeline:

• Context Relevance: did retrieval fetch chunks that answer the question?
• Context Adherence: did the answer stay inside the retrieved chunks?
• Detect Hallucination: did the model introduce anything not in the source PDF?
• Task Completion: did the answer fully address the question?

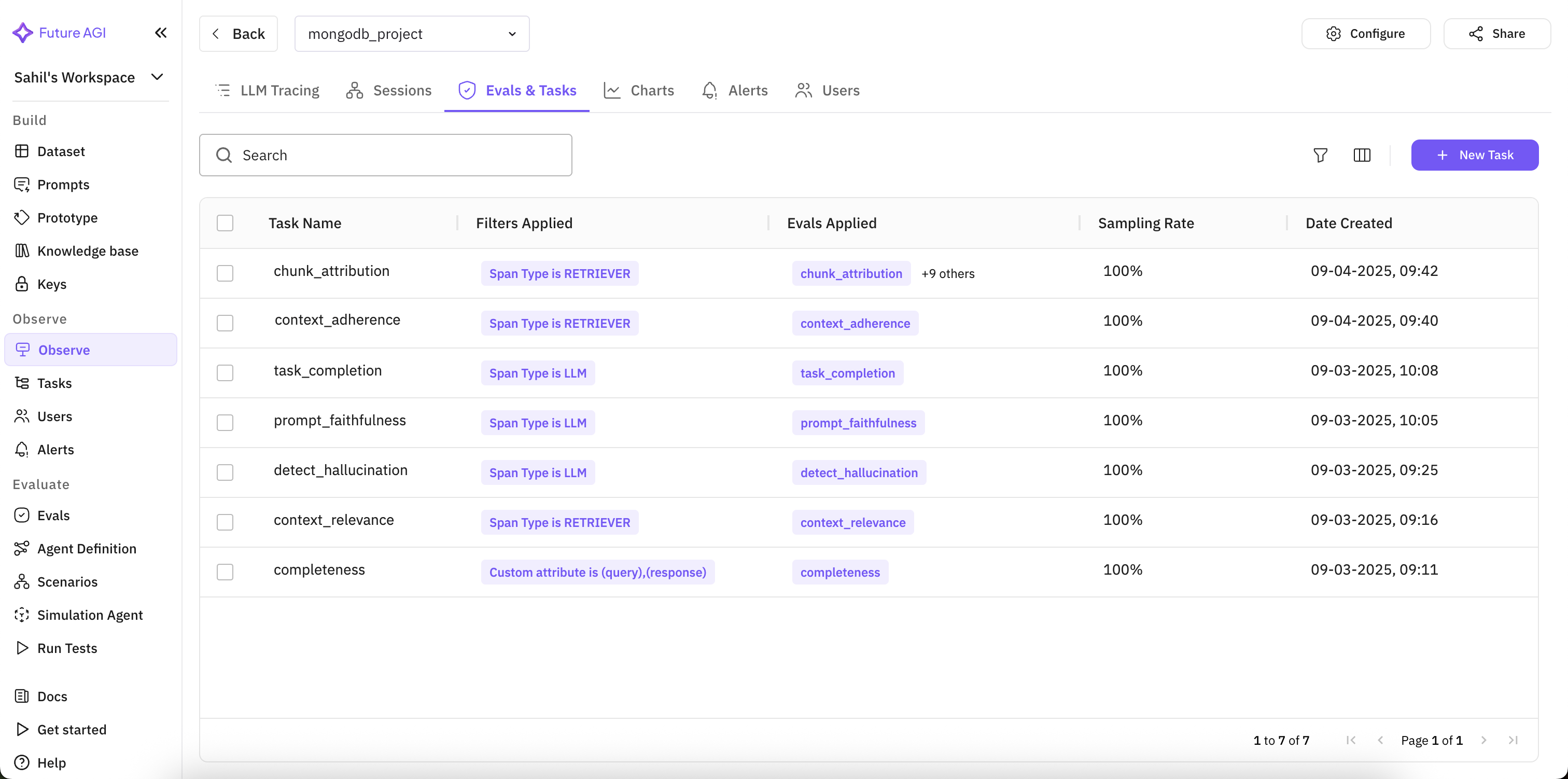

Attaching evals to the span type they should run against

For domain-specific fidelity beyond general hallucination detection, add a custom eval of your own naming (for example, one you call reference_verification) that fails a response unless every claim traces back to a retrieved chunk. See Creating your own evals.

You should see the Eval Task listed as active on the project, and scores start appearing on new traces within a few minutes.

Open a trace and compare the retrieved chunk against the answer directly. This is where “the pipeline looked healthy” and “the answer was wrong” split apart.

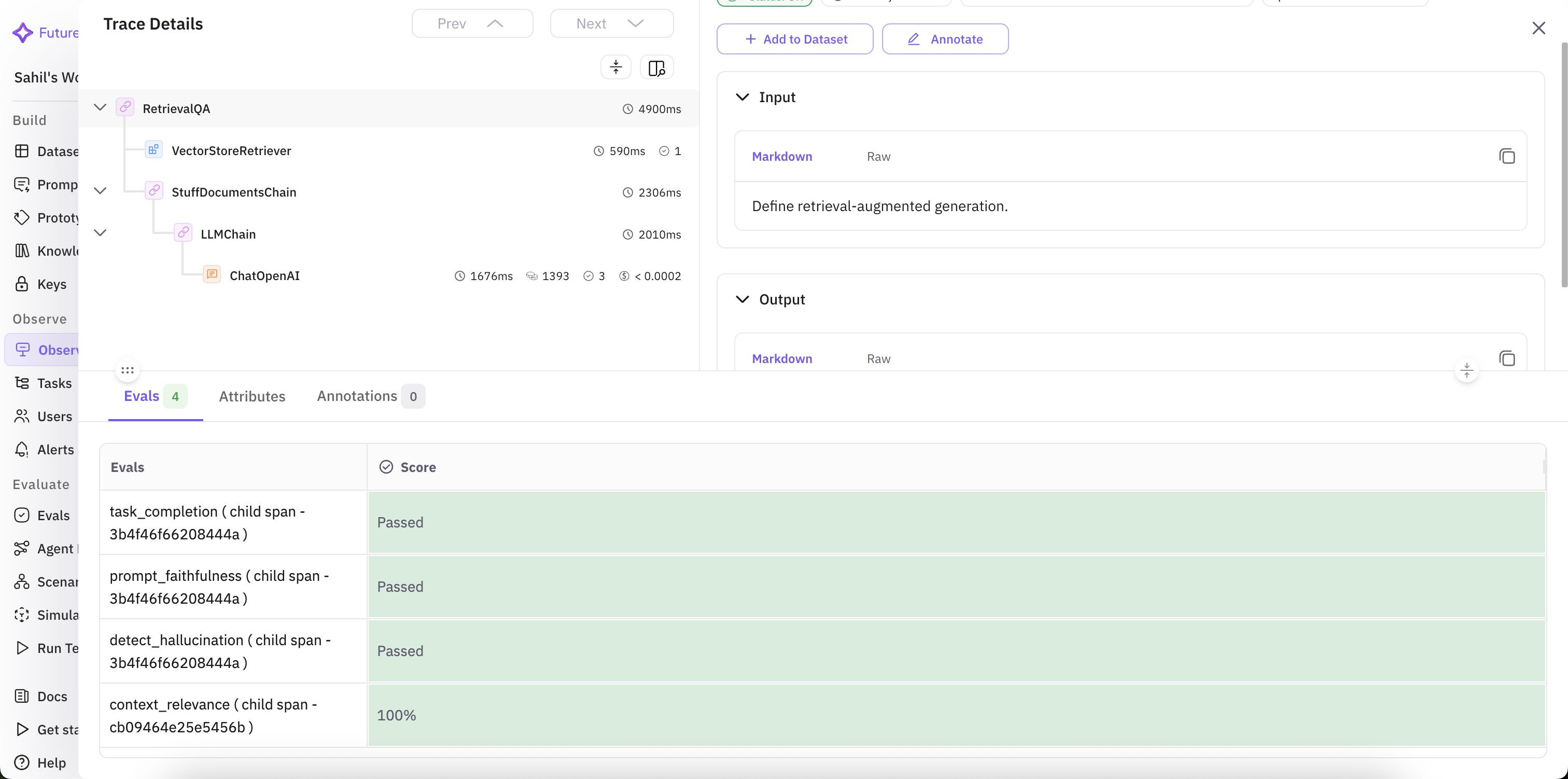

Span hierarchy, input/output, and per-span eval scores on one trace

On the final-sale question, Context Relevance scores high (the refund policy chunk was retrieved) but Context Adherence scores low: the retrieved policy says final-sale items aren’t refundable, and the answer promises a refund anyway. Task Completion alone would have called this a good answer; Context Adherence is what catches it.

You should see a low Context Adherence score on that specific trace, with Context Relevance staying high on the same trace, pointing the failure at generation rather than retrieval.

Turn the check from step 6 into a standing monitor instead of something you eyeball per trace. Set an alert on the eval score, an interval to check it over, and a threshold that represents an acceptable answer.

Creating an alert on Context Adherence

Triggered alerts land in a single dashboard across projects, so you can see which ones are healthy and which are firing without opening each trace.

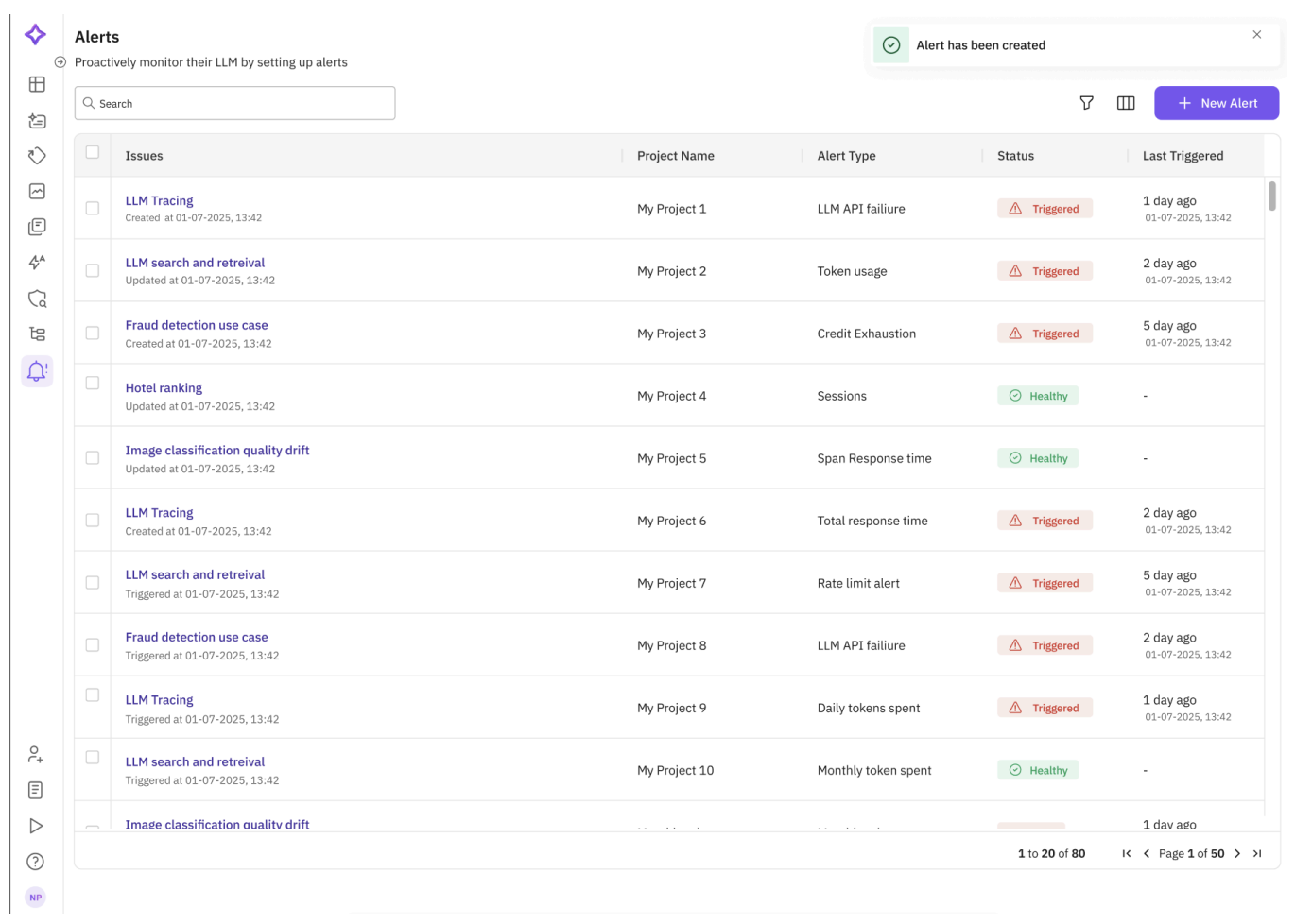

Alerts dashboard across projects

You should see the alert listed as Healthy until Context Adherence drops below the threshold you set, at which point it moves to Triggered and notifies the channel you configured.
